게시판 만들기 - DB생성 및 연결 설정





DB 테이블 생성

tb1_board

create table tbl_board(
	bno int not null auto_increment,
	title varchar(50) not null,
	content text not null,
	writer varchar(30) not null,
	regDate timestamp not null default now(),
	viewCnt int default 0,
	primary key(bno)
);











pom.xml 에 데이터 베이스 설정 추가



test 밑에

		<!-- database -->
		<!-- https://mvnrepository.com/artifact/org.mybatis/mybatis -->
		<dependency>
			<groupId>org.mybatis</groupId>
			<artifactId>mybatis</artifactId>
			<version>3.5.4</version>
		</dependency>

		<!-- https://mvnrepository.com/artifact/org.mybatis/mybatis-spring -->
		<dependency>
			<groupId>org.mybatis</groupId>
			<artifactId>mybatis-spring</artifactId>
			<version>2.0.4</version>
		</dependency>

		<!-- https://mvnrepository.com/artifact/org.springframework/spring-jdbc -->
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-jdbc</artifactId>
			<version>${org.springframework-version}</version>
		</dependency>

		<!-- commons-dbcp2 : 커넥션 풀 -->
		<dependency>
			<groupId>org.apache.commons</groupId>
			<artifactId>commons-dbcp2</artifactId>
			<version>2.7.0</version>
		</dependency>

		<!-- log4jdbc-log4j2-jdbc4 : SQL 실행 시 로그 -->
		<dependency>
			<groupId>org.bgee.log4jdbc-log4j2</groupId>
			<artifactId>log4jdbc-log4j2-jdbc4</artifactId>
			<version>1.16</version>
		</dependency>

		<!-- mysql-connector-java -->
		<dependency>
			<groupId>mysql</groupId>
			<artifactId>mysql-connector-java</artifactId>
			<version>8.0.19</version>
		</dependency>







root-context.xml 에 db연결 정보 입력

	<!-- 데이터소스에 DB연결 정보를 입력 -->
	<bean id="dataSource"
		class="org.apache.commons.dbcp2.BasicDataSource"
		destroy-method="close">
		<property name="driverClassName"
			value="com.mysql.cj.jdbc.Driver" />
		<property name="url"
			value="jdbc:mysql://localhost:3306/legacy?serverTimezone=UTC&amp;useSSL=false&amp;useUnicode=true&amp;characterEncoding=UTF-8" />
		<property name="username" value="root" />
		<property name="password" value="1234" />
	</bean>

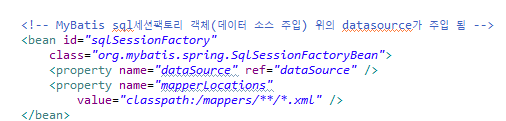

	<!-- MyBatis sql세션팩토리 객체(데이터 소스 주입) 위의 datasource가 주입 됨 -->
	<bean id="sqlSessionFactory"
		class="org.mybatis.spring.SqlSessionFactoryBean">
		<property name="dataSource" ref="dataSource" />
		<property name="mapperLocations"
			value="classpath:/mappers/**/*.xml" />
	</bean>

	<!-- sql팩토리 주입하여 sql메서드 실행 객체 -->
	<bean id="sqlSessionTemplate"
		class="org.mybatis.spring.SqlSessionTemplate">
		<constructor-arg index="0" ref="sqlSessionFactory" />
	</bean>





경로를 mappers폴더로 지정해서

resources에 sql 파일을 저장할 mappers 폴더 생성한다.
